TG-6200

TG-6200 doors, 8' x 9', Ice WhiteTG-6200 doors, 8' x 9', Ice White

  • Steel
  • Thickness: 2"
  • 5 colours
  • Polystyrene sandwich door
  • R‑10 insulation
  • Model: Flush

Features and benefits

Bonded steel and polystyrene

A

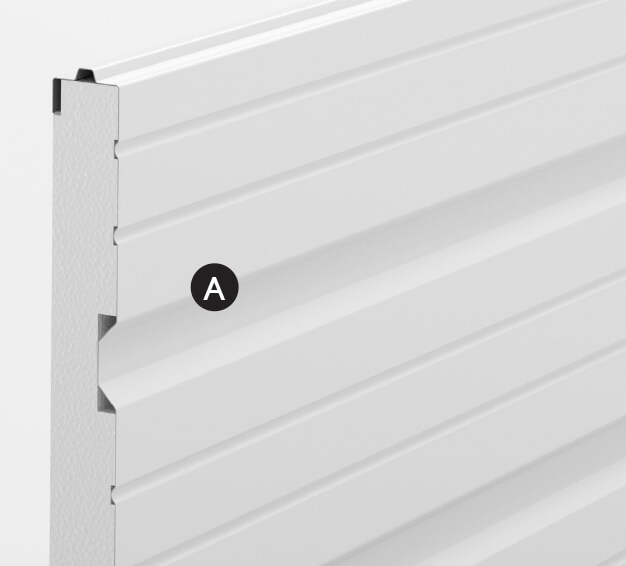

Bonded steel and polystyrene

  • Stronger corrosion resistance with its 26-gauge galvanized steel on both sides of the door, having a G60 coating (zinc galvanized with a minimum of 180 g/m2).

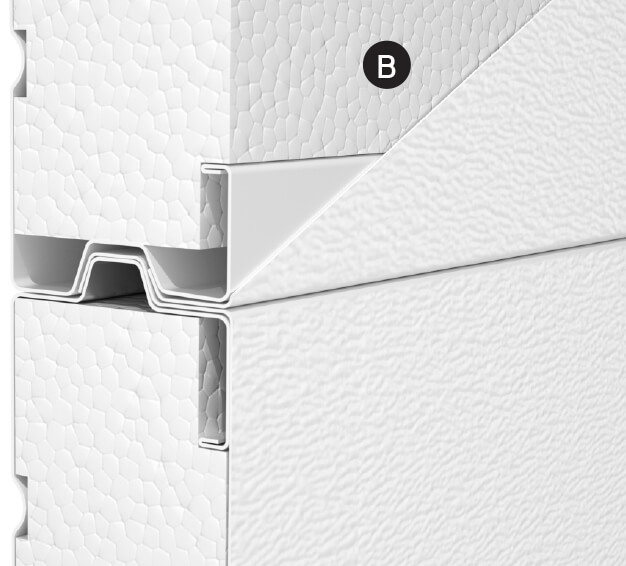

  • 2“ polystyrene insulation bonded to two steel walls for more strength.

B

InterStopTM joints

  • InterStopTM joints between sections prevent air infiltration.
  • Efficient thermal breaks on the upper side of the sections stops cold and heat transfers.
Wood End Blocks

C

Wood end blocks

  • Kiln-dried pine structural elements provide thermal break that is more effective than steel end caps which form a thermal bridge. Garaga Lab - Tested Logo

  • Lag screw system provides much better fastening of the end hinges. The lag screws engage 8 threads into the wood, compared to a self-tapping screw going through a steel end cap engaging only about 2 or 3 threads.
Man Technical Support

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Panel construction

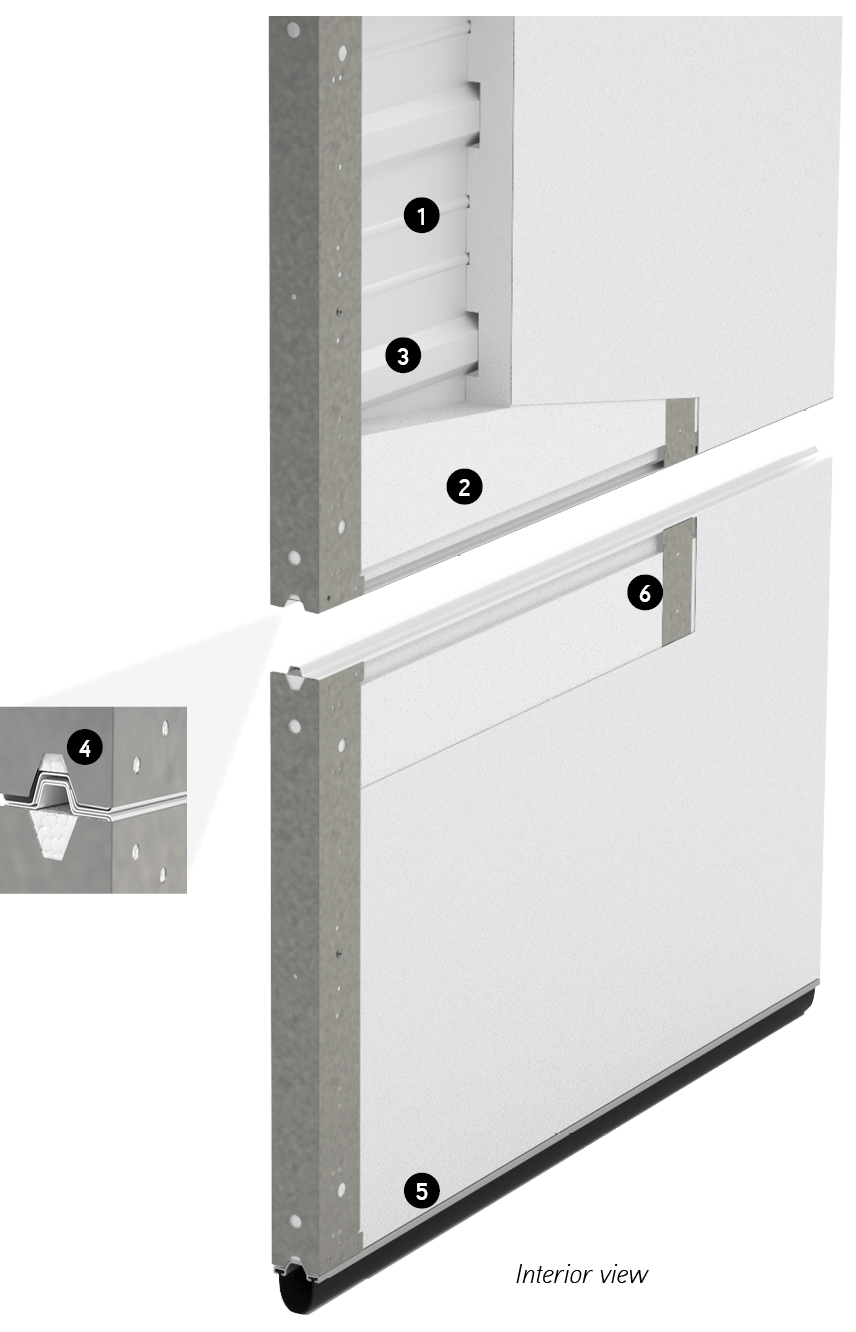

TG-6200 panel construction

1

Steel walls

  • 26/26-gauge, G60 hot-dipped galvanized steel with five coats of protective finish.
  • Baked-on polyester paint. Can be repainted.
  • Woodgrain finish on both sides of the door.
  • Same quality of corrosion-resistant steel for interior and exterior faces.

2

2” (50 mm) CFC-free polystyrene ensures a thermal-resistance rating of R-10 (RSI 1.8 or k=0.556 W/m2K).

3

InterStopTM joints between each section prevent air infiltration and provide an efficient thermal break on the top side of the sections.

4

Continuous PVC bottom weatherstripping made of a U-shape and a semi-circular flexible.

5

Wood end blocks made of kiln-dried pine (grade 4). With our lag screw system, ensure a better fastening of the end hinges. They also provide a thermal break which prevents thermal bridging.

6

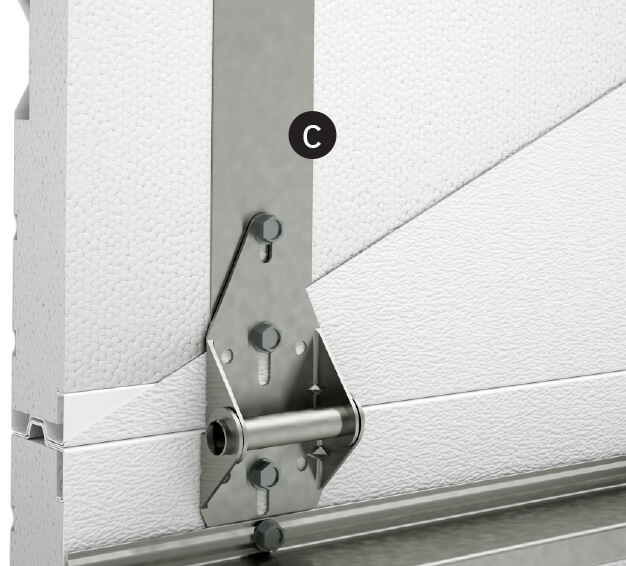

20-gauge steel reinforcement plates placed inside the door for solidly attaching hinges and struts.

Door weight:

TG-6200: 1.80 lb/ft2 (8.8 kg/m2)

Model

Flush layout

Flush

Sizes

Widths

In 1" (25 mm) increments

From 5' to 18'2"

(1.5 m to 5.5 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Sizes

TG-6200

Widths

In 1" (25 mm) increments

From 5' to 18'2"

(1.5 m to 5.5 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Warranties

  • 10 years against any perforation of steel due to rust
  • 10 years on the wood and blocks against cracking and rot
  • 1 year on other door components
  • 10 years against seal defects on Standard windows

Colours

Standard

Ice white swatch

Ice White

Desert Sand swatch

Desert Sand

Claystone swatch

Claystone

Dark sand swatch

Dark Sand

Moka brown swatch

Moka Brown

The accuracy of colours on the website may vary depending on your screen settings. To see the true colours, please contact your local Garaga dealer for a sample.

Windows

Standard windows

TG-6200 Standard windows

Available for doors:

TG-6200

Sizes

21" x 13" (533 mm x 330 mm)

Glass

  • Thermopane windows: Clear, Satin, Wired, Tempered, Laminated or Tinted
  • Single glass (3 mm): Clear, Satin, Tempered or Tinted
  • Polycarbonate (3 mm): Single or Thermal (Sealed): Clear or Tinted

Frame colour

White

TG‑6200

Hardware

Steel tracks

  • 2” (50 mm), 13-gauge or 14-gauge
  • 3” (76 mm), 12-gauge

Hardware systems and options

Learn more about:

Documents to download

Technical drawings

 Technical Drawing TG-6200

Brochure

 TG‑6200 Flyer

Electric garage door openers

LiftMaster Logo

LiftMaster - 3 Commercial Garage Door Openers

Consult the list of all available commercial opener models

LEED Projects

Leed Projects Logo

Garaga can provide the required information to obtain a LEED project.

Recycled material content of our steel is:

  • 25% post industrial
  • 20% post consumption
